Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: UL and RoHs
Số mô hình: TIF200-02US
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1000 CÁI
Giá bán: 0.1-10 USD/PCS
chi tiết đóng gói: Thùng 24*13*12cm
Thời gian giao hàng: 3-5 ngày làm việc
Điều khoản thanh toán: T/T
Khả năng cung cấp: 100000 chiếc / ngày
Tên sản phẩm: |
Tấm đệm nhiệt silicone Chất làm đầy khoảng cách dẫn nhiệt cao với siêu mềm cho thiết bị điện tử tiêu |
Độ dẫn nhiệt: |
1,5W/mk |
vật mẫu: |
Mẫu miễn phí |
Tỉ trọng: |
2.2g/cm3 |
Màu sắc: |
hồng/trắng |
độ cứng: |
20 bờ 00 |
Điện áp đánh thủng(V/mm): |
≥5500 |
Từ khóa: |
Chất độn khoảng cách nhiệt |
Ứng dụng: |
Điện tử tiêu dùng |
Tên sản phẩm: |
Tấm đệm nhiệt silicone Chất làm đầy khoảng cách dẫn nhiệt cao với siêu mềm cho thiết bị điện tử tiêu |
Độ dẫn nhiệt: |
1,5W/mk |
vật mẫu: |
Mẫu miễn phí |
Tỉ trọng: |
2.2g/cm3 |
Màu sắc: |
hồng/trắng |
độ cứng: |
20 bờ 00 |
Điện áp đánh thủng(V/mm): |
≥5500 |
Từ khóa: |
Chất độn khoảng cách nhiệt |
Ứng dụng: |
Điện tử tiêu dùng |

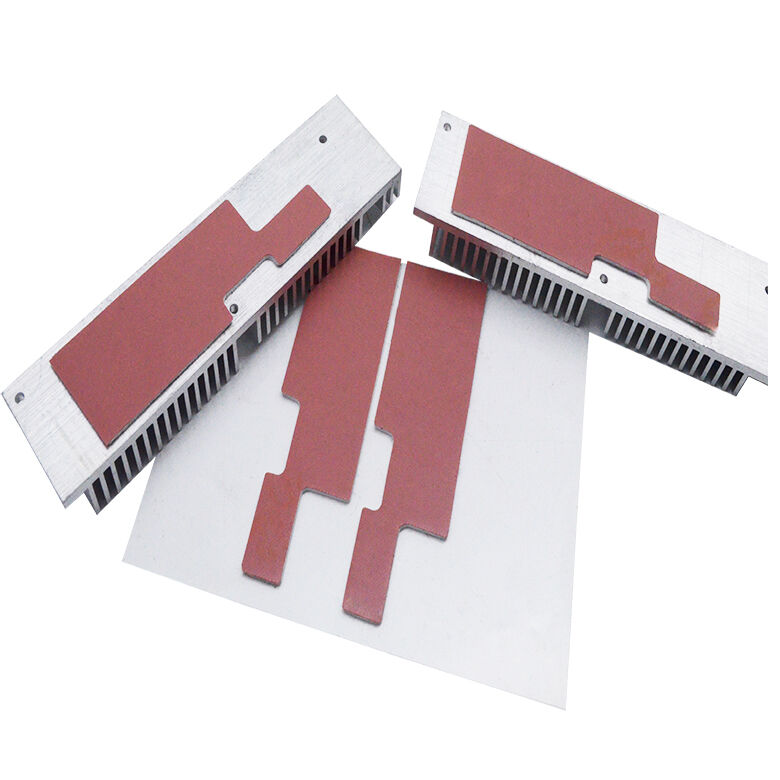

Silicone Thermal Pad High Thermal Conductivity Gap Filler With Ultra Soft For Consumer Electronics
Products description
The TIF®200-02US Series is a compound thermal interface material that combines good thermal conductivity, reliable electrical insulation,and soft characteristics. This product not only provides excellent thermal conductivity but also ensures superior breakdown voltage strength, effectively preventing circuit short circuits. Its soft characteristic allows it to fully fill uneven interfaces, providing excellent cushioning protection for precision components while dissipating heat. This series is an ideal choice for applications requiring electrical isolation,such as power devices, new energy vehicles, and portable electronic devices.
Features:
> Good thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> High insulation performance
> Puncture-resistant, tear-resistant, and scratch-resistant performancee
Applications:
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Set top boxes
> Audio and video components
> Power Electronics
> Automotive Electronics
> Consumer Electronics
> Industrial Control
> New Energy
| Typical Properties of TIF®200-02US Series | |||
| Property | Value | Test method | |
| Color | Pink/White | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 20 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
| 1.5 W/m-K | ISO22007 | ||
Product Specification
Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Ziitek Technology CO.,Ltd is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
