Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: RoHS
Số mô hình: TIF200-04ES
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1000 chiếc
Giá bán: 0.1-10 USD/PCS
chi tiết đóng gói: Thùng 24*13*12cm
Thời gian giao hàng: 3-5 ngày làm việc
Điều khoản thanh toán: T/T
Khả năng cung cấp: 100000 chiếc / ngày
Tên sản phẩm: |
Tấm đệm nhiệt silicon dẫn nhiệt cực mềm 1.0 W/MK Tấm đệm nhiệt chịu nhiệt |
Màu sắc: |
Xanh/Hồng |
Ứng dụng: |
Thiết Bị Chiếu Sáng, Y Tế, Quân Sự, Netcom, Bảng Điều Khiển |
Độ dẫn nhiệt: |
1,0W/mK |
Đánh giá ngọn lửa: |
94-V0 |
Từ khóa: |
đệm khe hở nhiệt |
Trọng lượng riêng: |
1,75g/cm³ |
độ cứng: |
7 Bờ 00 |
Nguyên vật liệu: |
Chất đàn hồi silicon chứa đầy gốm |
Vật mẫu: |
Mẫu miễn phí |
Tên sản phẩm: |
Tấm đệm nhiệt silicon dẫn nhiệt cực mềm 1.0 W/MK Tấm đệm nhiệt chịu nhiệt |
Màu sắc: |
Xanh/Hồng |
Ứng dụng: |
Thiết Bị Chiếu Sáng, Y Tế, Quân Sự, Netcom, Bảng Điều Khiển |
Độ dẫn nhiệt: |
1,0W/mK |
Đánh giá ngọn lửa: |
94-V0 |
Từ khóa: |
đệm khe hở nhiệt |
Trọng lượng riêng: |
1,75g/cm³ |
độ cứng: |
7 Bờ 00 |
Nguyên vật liệu: |
Chất đàn hồi silicon chứa đầy gốm |
Vật mẫu: |
Mẫu miễn phí |

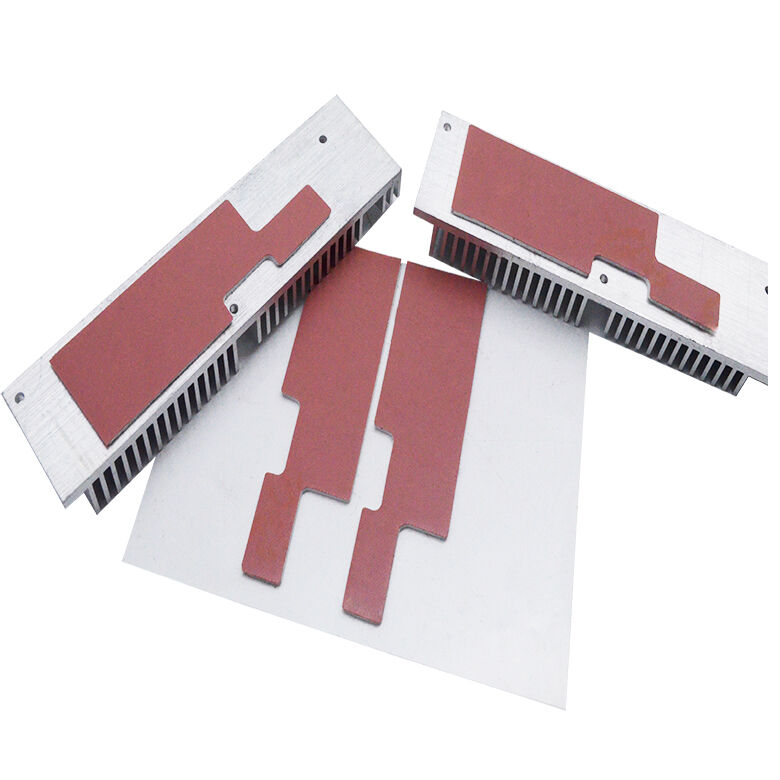

Extremely Soft Thermally Conductive Silicon Thermal Pad 1.0 W/MK Heat Resistant Thermal Gap Pad
Product descriptions
The TIF®200-04ES Series is a compound thermal interface material that combines good thermal conductivity, reliable electrical insulation, and extremely soft characteristics. This product not only provides excellent thermal conductivity but also ensures superior breakdown voltage strength, effectively preventing circuit short circuits. Its soft characteristic allows it to fully fill uneven interfaces, providing excellent cushioning protection for precision components while dissipating heat. This series is an ideal choice for applications requiring electrical isolation,such as power devices, new energy vehicles, and portable electronic devices.
Features
> Good thermal conductivity
> Extremely soft, low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Puncture-resistant, tear-resistant,and scratch-resistant performance
Applications
Electronic components, 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
| Typical Properties of TIF®200-04ES Series | |||
| Property | Value | Test method | |
| Color | Blue /Pink | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 1.75 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.020~0.030 (0.50~0.75) |
0.040~0.200 (1.00~5.0) |
ASTM D374 |
| Hardness | 7 Shore 00 | 7 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥8000 | ASTM D149 | |
| Dielectric Constant @1MHz | 4.9 | ASTM D150 | |
| Volume Resistivity | ＞1.0X1013 Ohm-meter | ASTM D257 | |
| Thermal Conductivity(W/m.K) | 1.0 | ASTM D5470 | |
| 1.0 | ISO22007 | ||
| Flame rating | V-0 | UL 94 (E331100) | |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
Ziitek Technology Company with a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Independent R&D team
