Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: UL and RoHs
Số mô hình: TIS680-10AB
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 10kg
Giá bán: 0.1-10 USD/kg
chi tiết đóng gói: 1kg/lon
Thời gian giao hàng: 3-5 ngày làm việc
Điều khoản thanh toán: T/T
Khả năng cung cấp: 10000kg / tháng
Tên sản phẩm: |
Silicone hợp chất bầu nhiệt không thấm nước và kín khí hai phần 1,5W/Mk cho xe điện EV |
Vật liệu: |
Hợp chất bầu của silicone |
Độ dẫn nhiệt: |
1,0W/mK |
Vẻ bề ngoài: |
Màu xám trắng |
độ cứng: |
65（Bờ 00） |
Từ khóa: |
silicon hợp chất nén nhiệt |
Cách sử dụng: |
bầu |
Phần: |
hai thành phần |
Mật độ (g/cm³): |
1,73 |
Thời hạn sử dụng (tháng): |
6 (Chưa mở) |
Tên sản phẩm: |
Silicone hợp chất bầu nhiệt không thấm nước và kín khí hai phần 1,5W/Mk cho xe điện EV |
Vật liệu: |
Hợp chất bầu của silicone |
Độ dẫn nhiệt: |
1,0W/mK |
Vẻ bề ngoài: |
Màu xám trắng |
độ cứng: |
65（Bờ 00） |
Từ khóa: |
silicon hợp chất nén nhiệt |
Cách sử dụng: |
bầu |
Phần: |
hai thành phần |
Mật độ (g/cm³): |
1,73 |
Thời hạn sử dụng (tháng): |
6 (Chưa mở) |
Waterproof And Air-Tight Two Part 1.5W/Mk Thermal Potting Compound Silicone For EV Electric Vehicle
Products description

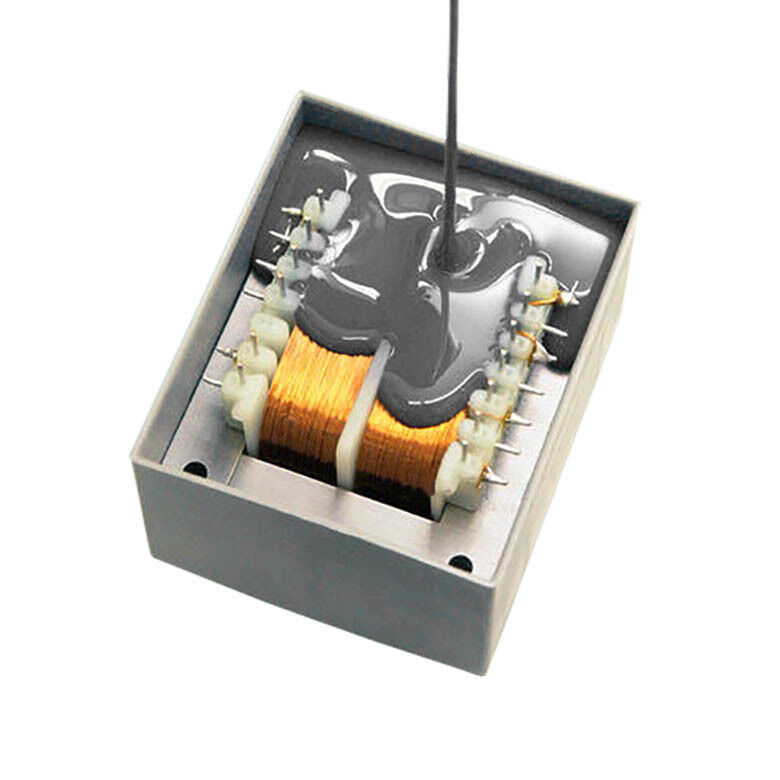

TIS®680-10AB is a two-component potting adhesive.When Component A and Component B are mixed in a specific ratio, the adhesive can cure and form into'shape either at room temperature or under heating conditions. After curing, it forms a dense elastomer with integrated performance characteristics: good thermal conductivity, electrical insulation, resistance to extreme temperatures, and anti-aging properties. It features low shrinkage rate, can closely adhere to various substrates, and effectively fills thegaps between electronic components. This product delivers comprehensive protection for electronic assemblies,including thermal conduction, insulation, waterproofing, shock absorption, flame retardancy, and mechanical safeguarding.
Feature
>Good thermal conductivity
>Good electrical insulation performance
>Controllable curing performance
>Flexibly adjustable mechanical properties
>Low viscosity facilitating gas release
>Excellent solvent and water resistance
>Excellent process compatibility
>Excellent resistance to extreme temperatures
Application
>New energy vehicle electronics
>Industrial electronics and power equipment
>Consumer electronics
>Medical electronics
>Aerospace electronic components
>Rail transit electronic equipment
>Marine detection equipment
| Typical Properties of TIS®680-10AB Series | |||
| Uncured Material Properties | |||
| Property | Value | Test Method | |
| Construction | Ceremic-fiiled silicone | - | |
| Color/Part A | White | Visual | |
| Color/Part B | Black | Visual | |
| Part A Viscosity (mPa.s) | 3500 | GB/T 10247 | |
| Part B Viscosity (mPa.s) | 3500 | GB/T 10247 | |
| Mix Ratio | 1:1 | - | |
| Shelf life (months) | 6 (Unopened) | - | |
| Cure Schedule | |||
| Pot Life @25℃ | 30 mins | Ziitek Test Method | |
| Cure @25℃ | 3 hours | Ziitek Test Method | |
| Cure @70℃ | 20 mins | Ziitek Test Method | |
| Cure Material Properties | |||
| Color | Gray White | Visual | |
| Hardness (Shore 00) | 65 | ASTM D2240 | |
| Density (g/cm³) | 1.73 | ASTM D792 | |
| Recommended Operating temperature (℃) | -45 ~200 | - | |
| Flame Rating | V-0 | UL 94 | |
| Thermal Conductivity (W/mK) | 1.0 | ASTM D5470 | |
| Breakdown Voltage (V/mm) | ≥7000 | ASTM D149 | |
| Dielectric Constant @1MHz | 4.2 | ASTM D150 | |
| Volume Resistivity (Ohm·cm) | ＞1.0x1012 | ASTM D257 | |
Instruction For Use
Product packaging:
1KG A/B for each tank.
5KG A/B each.
10KG A/B each.
