Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: RoHS
Số mô hình: Z-Bọt800-10SC
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1000 chiếc
Giá bán: 0.1-10 USD/PCS
chi tiết đóng gói: Thùng 24*13*12cm
Thời gian giao hàng: 3-6 ngày làm việc
Điều khoản thanh toán: T/T
Khả năng cung cấp: 1000000 PC/tháng
Tên sản phẩm: |
Z-Foam800-10SC Chất liệu tạo bọt silicone chịu nhiệt độ cao chống sốc cho xe điện |
Màu sắc: |
xám |
Mật độ (g/cm³): |
0,37 |
Bộ nén @100oC(%): |
＜0,37 |
Cấu trúc & Thành phần: |
Cao su silicon |
Độ bền kéo (MPA): |
≥0,3 |
Điện áp đánh thủng (kv/mm): |
≥2,5 |
Ứng dụng: |
Xe điện |
Từ khóa: |
Tạo bọt silicone |
Tên sản phẩm: |
Z-Foam800-10SC Chất liệu tạo bọt silicone chịu nhiệt độ cao chống sốc cho xe điện |
Màu sắc: |
xám |
Mật độ (g/cm³): |
0,37 |
Bộ nén @100oC(%): |
＜0,37 |
Cấu trúc & Thành phần: |
Cao su silicon |
Độ bền kéo (MPA): |
≥0,3 |
Điện áp đánh thủng (kv/mm): |
≥2,5 |
Ứng dụng: |
Xe điện |
Từ khóa: |
Tạo bọt silicone |

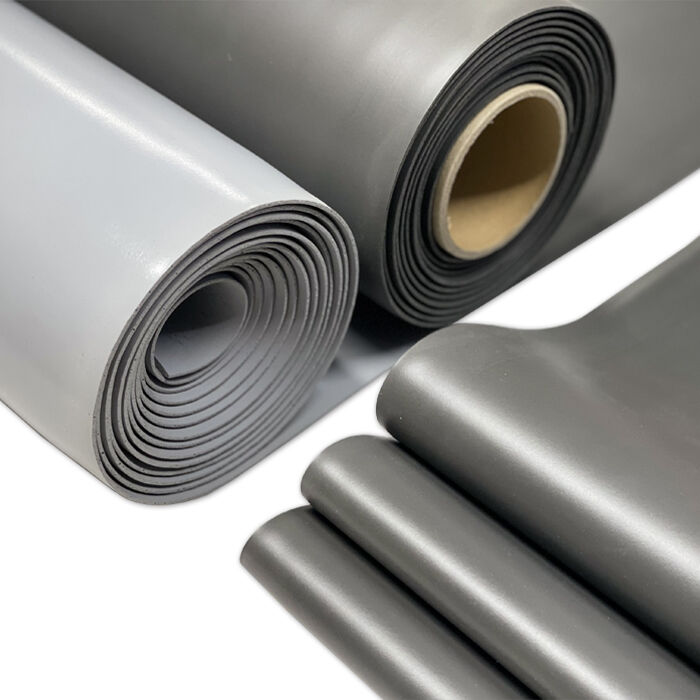

Z-Foam800-10SC High Temperature Resistance Shock Resistance Silicone Foaming Material For Electric Vehicle
Z-Foam®800-10SC series foamed silicone is a foam material formed by the foaming of poly siloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weather ability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance, creep resistance, flame retardancy, and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing, vibration damping, cushioning, sound insulation.
Features
>Resistant to mechanical fatigue
>Resistant to ozone and ultraviolet rays
>High oxygen index, low smoke,low toxicity
>Excellent performance under extreme temperatures
>Excellent resistance to compression set and creep
Application
>Communication Equipment
>Smart Devices
>Cables and Optical Fibers
>Airplanes, High-Speed Trains,Automobiles
>Telecommunication and Electrical Cabinets
| Typical Properties of Z-Foam®800-10SC Series | ||
| Properties | Value | Test method |
| Color | Gray | Visual |
| Structure & Component | Silicone rubber | ****** |
| Density (g/cm3) | 0.37 | ASTM D1056 |
| Compression Set @100℃(%)) | ＜5.0 | ASTM D1056 |
| Tensile Strength (MPa) | ≥0.3 | ASTM D412 |
| Elongation At Break (%) | ≥90 | ASTM D570 |
| Water Absorption (%) | ≤5.0 | ASTM D412 |
| Breakdown Voltage (kV/mm) | ≥2.5 | ASTM D149 |
| Volume Resistivity (Ω·cm) | ≥1.0 x 1014 | ASTM D257 |
| Temperature Range (℃)) | -55~200 | ****** |
| Flame Rating | V-0 | UL94 (E331100) |
Standard Sheet Size:23" x 60"(584mm x 1524mm)
Z-Foam® Series can be die-cut into different shapes provided.
For More different thickness,please contact us.
Company profile
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Tags:
