Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: RoHS
Số mô hình: TIF100 2855-10
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1000 chiếc
Giá bán: 0.1-10 USD/PCS
chi tiết đóng gói: 24*13*12cm thùng
Thời gian giao hàng: 3-5 ngày làm việc
Điều khoản thanh toán: T/T
Khả năng cung cấp: 100000 chiếc / ngày
Tên sản phẩm: |
Vật liệu PAD GAP nhiệt ít chảy máu cho bộ xử lý AI Máy chủ AI |
Màu sắc: |
Xám |
Độ dẫn nhiệt: |
2,8W/mK |
Từ khóa: |
Tấm nhiệt |
độ cứng: |
65 bờ biển 00 |
Trọng lượng riêng: |
3.0g/cc |
Vật mẫu: |
Mẫu miễn phí |
Ứng dụng: |
Bộ xử lý AI Máy chủ AI |
Đánh giá ngọn lửa: |
94-V0 |
Nguyên vật liệu: |
Chất đàn hồi silicon chứa đầy gốm |
Tên sản phẩm: |
Vật liệu PAD GAP nhiệt ít chảy máu cho bộ xử lý AI Máy chủ AI |
Màu sắc: |
Xám |
Độ dẫn nhiệt: |
2,8W/mK |
Từ khóa: |
Tấm nhiệt |
độ cứng: |
65 bờ biển 00 |
Trọng lượng riêng: |
3.0g/cc |
Vật mẫu: |
Mẫu miễn phí |
Ứng dụng: |
Bộ xử lý AI Máy chủ AI |
Đánh giá ngọn lửa: |
94-V0 |
Nguyên vật liệu: |
Chất đàn hồi silicon chứa đầy gốm |

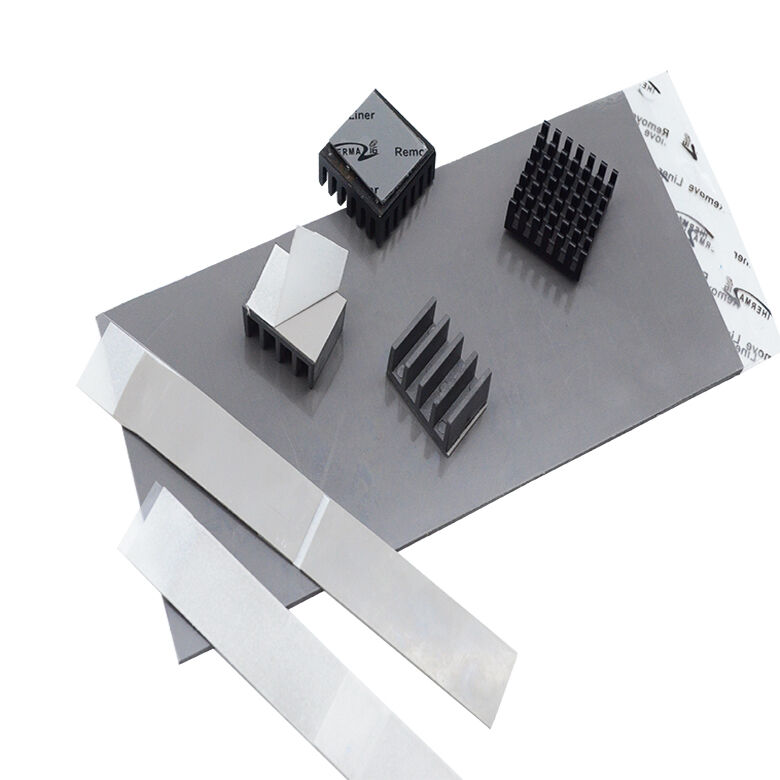

TIF100 2855-10 Low Bleed Thermal Pad Thermal GAP PAD Materials For AI Processors AI Servers
Product descriptions
The TIF®100 2855-10 is a general-purpose thermal pad with balanced performance. It offers high thermal conductivity and moderate hardness. This balanced design provides good surface conformability and excellent ease of use, effectively delivering a thermal transfer path and basic physical protection for a wide range of electronic components.
Features
> Good thermal conductive: 2.8W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance
Application
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures
| Typical Properties of The TIF®100 2855-10 Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.5) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 55 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 6.2 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 2.8 W/m-K | ASTM D5470 | |
| 2.8 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
