Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: UL and RoHs
Số mô hình: TCP200-25-06A
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 10kg
Giá bán: 0.1-10 USD/KG
chi tiết đóng gói: 25kg/túi
Thời gian giao hàng: 3-6 ngày làm việc
Điều khoản thanh toán: T/T
Khả năng cung cấp: 1000000kg / tháng
Tên sản phẩm: |
Chất liệu nylon dẫn nhiệt 2,5W màu trắng cho đèn LED |
Vật liệu: |
nylon |
Ứng dụng: |
Lớp lồng đèn LED |
Màu sắc: |
Trắng |
Nhiệt độ lệch nhiệt: |
180oC |
Từ khóa: |
Nhựa dẫn nhiệt |
Độ dẫn nhiệt: |
2,5W/mK |
Tính năng: |
Nhẹ hơn vỏ nhôm thông thường 30% trọng lượng |
Tên sản phẩm: |
Chất liệu nylon dẫn nhiệt 2,5W màu trắng cho đèn LED |
Vật liệu: |
nylon |
Ứng dụng: |
Lớp lồng đèn LED |
Màu sắc: |
Trắng |
Nhiệt độ lệch nhiệt: |
180oC |
Từ khóa: |
Nhựa dẫn nhiệt |
Độ dẫn nhiệt: |
2,5W/mK |
Tính năng: |
Nhẹ hơn vỏ nhôm thông thường 30% trọng lượng |

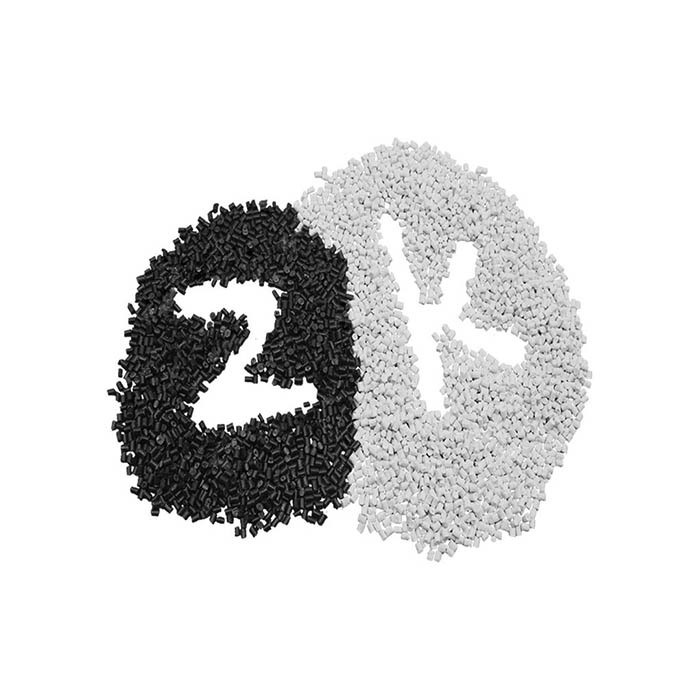

TCP200-25-06A White 2.5W Thermally Conductive Plastics Nylon Material For LED Light Lamp
TCPTM200-25-06A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.
Application
TCP™200-25-06A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.
Feature
> Good thermal conductivity: 2.5W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.
| Typical Properties of TCPTM200-25-06A | |||
| Items | Test method | Unit | Typical data |
| Physical Properties | |||
| Material | ***** | ***** | Nylon |
| Color | Visual | ***** | White |
| Melt index | ASTM D1238 | g/10min | 16 |
| Specific Gravity | ASTM D792 | g/cm3 | 1.8 |
| Shrinkage | ASTM D955 | % | 0.45 |
| Mechanical Properties | |||
| Tensile Strength | ASTM D638 | MPa | 45 |
| Flexural Strength | ASTM D790 | MPa | 75 |
| Flexural Modulus | ASTM D638 | MPa | 12000 |
| Impact Strength, notched | ASTM D256 | kJ/m2 | 4.5 |
| Electrical Properties | |||
| Dielectric Constant, 1MHz | ASTM D150 | ***** | 4.5 |
| Volume Resistivity | ASTM D257 | Ohm-meter | 8.0*1012 |
| Dielectric Breakdown Voltage | ASTM D149 | KV/mm | ＞5.5 |
| Thermal Properties | |||
| Heat Deflection Temperature | ASTM D648 | ℃ | 180 |
| Vicat Temperature | ASTM D648 | ℃ | 170 |
| Thermal Conductivity Throngh Plane | ASTM D5470 | W/m-K | 2.5 |
| Flame retardancy | Min. thick. 1.0mm | Class | V-0 |
| lnjection Parameters of Recommends | ||
| TCP200-25-06A Injection parameters | Value Range | |
| Barrel Zone Temperature | One sect / ℃ | 240-260°C |
| Two sect / ℃ | 260-275°C | |
| Three sect / ℃ | 260-275°C | |
| Mouth Temperature / ℃ | 250-280°C | |
| Melt Temperature / ℃ | 250-280°C | |
| Bake Temperature / ℃ | 90~100°C 4H | |
| Mould Temperature / ℃ | 80~100°C | |
| Injection Pressure / Bar | 3-9Mpa | |
| Injection Speed / mm/s | High Speed | |
|
Remarks: (1) above are for reference only, not as a product standard reference. |
||
