Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: RoHS
Số mô hình: TIF050-11-1
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1000 ống
Giá bán: 0.1-10 USD/PCS
chi tiết đóng gói: 300cc/ống
Thời gian giao hàng: 3-5 ngày làm việc
Điều khoản thanh toán: T/t
Khả năng cung cấp: 1000000 ống/tháng
Tên sản phẩm: |
Gel silicon dẫn nhiệt cho linh kiện điện tử |
Điện áp đánh thủng (V/mm): |
≥6000 |
Màu sắc: |
Màu xám đen |
Ứng dụng: |
Linh kiện điện tử |
Trọng lượng riêng: |
3.25g/cm3 |
Độ dẫn nhiệt: |
5.0W/mK |
Từ khóa: |
Gel nhiệt |
Materail: |
Vật liệu silicon đầy gốm |
Tên sản phẩm: |
Gel silicon dẫn nhiệt cho linh kiện điện tử |
Điện áp đánh thủng (V/mm): |
≥6000 |
Màu sắc: |
Màu xám đen |
Ứng dụng: |
Linh kiện điện tử |
Trọng lượng riêng: |
3.25g/cm3 |
Độ dẫn nhiệt: |
5.0W/mK |
Từ khóa: |
Gel nhiệt |
Materail: |
Vật liệu silicon đầy gốm |

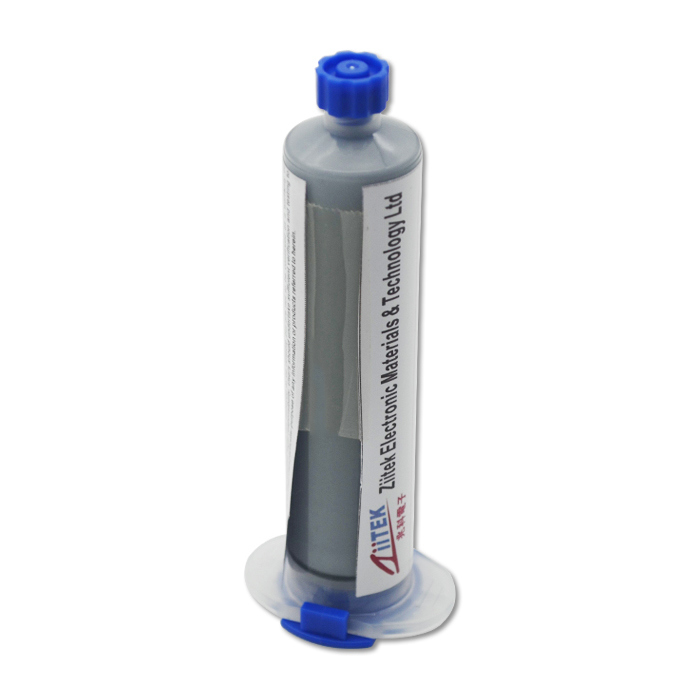

TIF®050-11-1 Thermal Conductive Silicone Gel For Electronic Components
Prodcuts Discription
TIF®050-11-1 is a thermally conductive paste with excellent interface thermal resistance characteristics and outstanding plasticity, capable of fully meeting the strict thermal management performance requirements of various designs; this material has extremely low hardness, possesses free-forming ability, and is easy to construct and assemble, demonstrating good stability in high-temperature environments. Its low-stress characteristics are particularly suitable for electronic devices that require high precision and high reliability,effectively reducing the mechanical stress on sensitive components during assembly and operation, ensuring the long-term stable operation of products in various application environments.
Feature
> Thermal conductivity: 5.0 W/mK
> Low stress, protect sensitive components.
> Strong plasticity. good stability
> Superior dielectric properties
Application
> Power module
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic laboratory equipment
| TIF®050-11-1 Typical Properties | ||
| Property | Value | Test method |
| Color | Dark Gray | Visual |
| Construction & Composition | Ceramic filled silicon material | - |
| Density(g/cm³) | 3.25g/c | ASTM D792 |
| Thermal conductivity | 5.0W/mK | ASTM D5470 |
| Breakdown Voltage (V/mm) | ≥6000 | ASTM D149 |
| Dielectric constant @1MHz | 7.7 | ADTM D150 |
| Flame Rating | V-0 | UL 94 |
| Volume resistivity(Ohm.cm) | 8.0 X 1013 | ASTM D257 |
Packing details
30 cc/pc, 98 pc/box;
300 cc/pc , 6 pc/box
We offer the custom packaged in syringes for automated despensing applications.
Please contact us for confirming.
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Q&A
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
