Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: RoHS
Số mô hình: TIF100-30-06UF
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1000pcs
Giá bán: 0.1-10 USD/PCS
chi tiết đóng gói: 24*13*12cm thùng
Thời gian giao hàng: 3-5 ngày làm việc
Điều khoản thanh toán: T/t
Khả năng cung cấp: 100000pcs/ngày
Tên sản phẩm: |
Tấm cách nhiệt khoảng cách làm mát 1,5W/MK Cao su silicone Tấm dẫn nhiệt dẫn điện cao để tản nhiệt c |
Nguyên vật liệu: |
Chất đàn hồi silicon đầy gốm |
Màu sắc: |
Trắng |
Độ cứng: |
75±5 bờ 00 |
Vật mẫu: |
Mẫu miễn phí |
Từ khóa: |
Tấm nhiệt |
Độ dẫn nhiệt: |
3.0w/mk |
Trọng lượng riêng: |
3.0g/cc |
Đánh giá ngọn lửa: |
94-V0 |
Ứng dụng: |
Chất bán dẫn CPU GPU Chất bán dẫn |
Tên sản phẩm: |
Tấm cách nhiệt khoảng cách làm mát 1,5W/MK Cao su silicone Tấm dẫn nhiệt dẫn điện cao để tản nhiệt c |
Nguyên vật liệu: |
Chất đàn hồi silicon đầy gốm |
Màu sắc: |
Trắng |
Độ cứng: |
75±5 bờ 00 |
Vật mẫu: |
Mẫu miễn phí |
Từ khóa: |
Tấm nhiệt |
Độ dẫn nhiệt: |
3.0w/mk |
Trọng lượng riêng: |
3.0g/cc |
Đánh giá ngọn lửa: |
94-V0 |
Ứng dụng: |
Chất bán dẫn CPU GPU Chất bán dẫn |

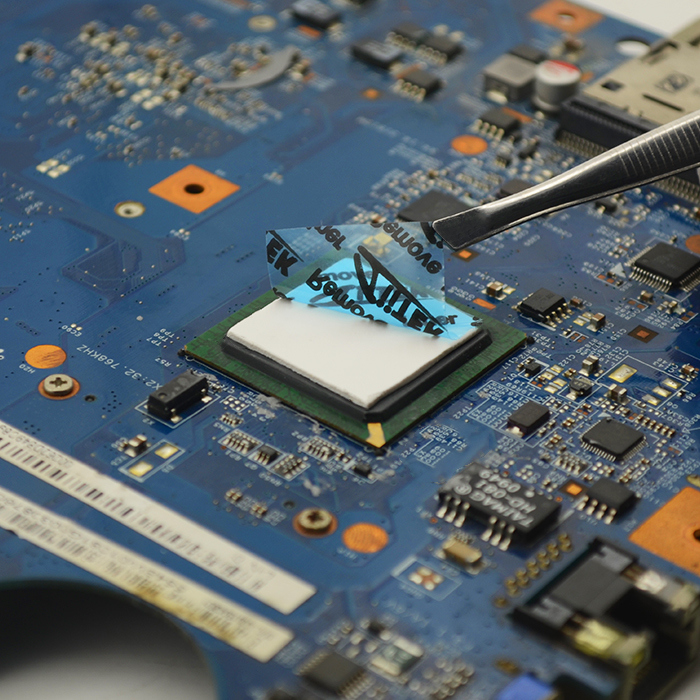

TIF100-30-06UF 1.5W/M.K Cooling Gap Filler Insulation Silicone Rubber High Conductive Thermal Pad For Semiconductor Heat Dissipation
Product descriptions
Ziitek TlF®100-30-06UF thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.
Features
> Good thermal conductive 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Application
> Mainboard/mother board
> Notebook
> Power supply
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| Typical Properties of TIF®100-30-06UF Series | ||
| Property | Value | Test method |
| Color | White | ***** |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 3.0g/cc | ASTM D297 |
| Thickness range | 0.010"~0.20"(0.25mm~5.0mm) | ASTM D374 |
| Hardness | 75±5 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 160℃ | ***** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 5.0 MHz | ASTM D150 |
| Volume Resistivity | 2.3X1013Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Thermal conductivity | 3.0W/m-K | ASTM D5470 |
Standard Thicknesses
0.010-inch to 0.20 inch (0.25mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm)
Individual die cut shapesand and custom thickness can be supplied.
Please contact us for confirming
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
