Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: RoHS
Số mô hình: TIF100-30-11US
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1000pcs
Giá bán: 0.1-10 USD/PCS
chi tiết đóng gói: 24*13*12cm thùng
Thời gian giao hàng: 3-5 ngày làm việc
Điều khoản thanh toán: T/t
Khả năng cung cấp: 100000pcs/ngày
Tên sản phẩm: |
Độ dẫn nhiệt độ dày 1,5W 0,5 ~ 5,0mm silicon pad cách nhiệt pad nhiệt cho máy trò chơi |
Từ khóa: |
Tấm nhiệt |
Độ dẫn nhiệt: |
3.0w/mk |
Vật mẫu: |
Mẫu miễn phí |
Nguyên vật liệu: |
Chất đàn hồi silicon đầy gốm |
Đánh giá ngọn lửa: |
94-V0 |
Màu sắc: |
Xám |
Độ cứng: |
20±5 Bờ 00 |
Trọng lượng riêng: |
3.0g/cc |
Ứng dụng: |
Máy chơi game |
Tên sản phẩm: |
Độ dẫn nhiệt độ dày 1,5W 0,5 ~ 5,0mm silicon pad cách nhiệt pad nhiệt cho máy trò chơi |
Từ khóa: |
Tấm nhiệt |
Độ dẫn nhiệt: |
3.0w/mk |
Vật mẫu: |
Mẫu miễn phí |
Nguyên vật liệu: |
Chất đàn hồi silicon đầy gốm |
Đánh giá ngọn lửa: |
94-V0 |
Màu sắc: |
Xám |
Độ cứng: |
20±5 Bờ 00 |
Trọng lượng riêng: |
3.0g/cc |
Ứng dụng: |
Máy chơi game |

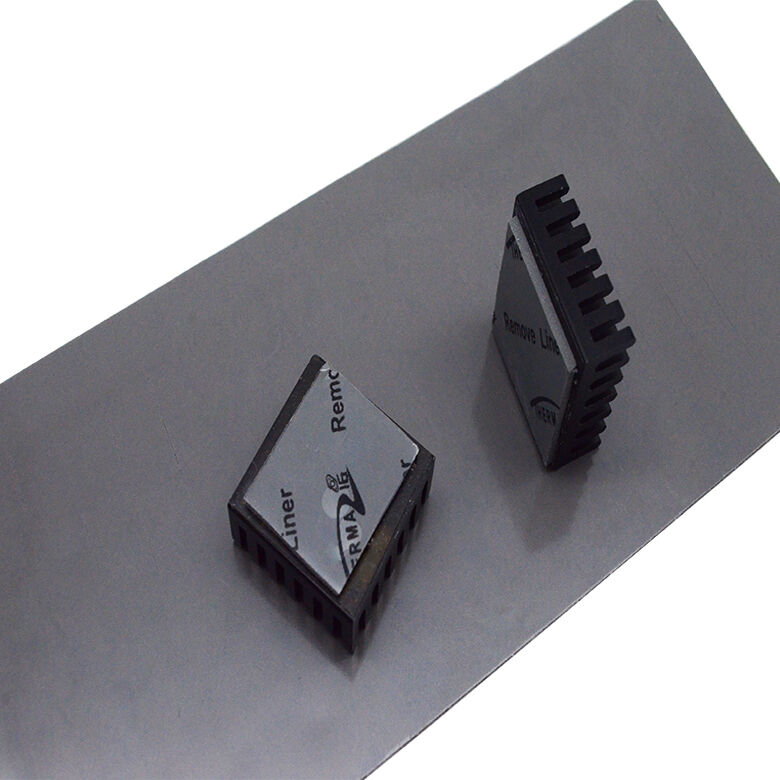

TIF®100-30-11US Thermal Conductivity 1.5W Thickness 0.5~5.0mm Silicone Thermal Pad Insulation Thermal Pad For Game Machine
Product descriptions
TlF®100-30-11US Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive 3.0W/mK
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
> Easy release construction
> Electrically isolating
> High durability
Application
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
| Typical Properties of TIF®100-30-11US Series | ||
| Property | Value | Test method |
| Color | Gray | ***** |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 3.0g/cc | ASTM D297 |
| Thickness range | 0.020"(0.50mm)~0.200"(5.0mm) | ASTM D374 |
| Hardness | 20±5 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ***** |
| Dielectric Breakdown Voltage | ≥5500 VAC | ASTM D149 |
| Dielectric Constant | 4.0 MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X1012 Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Thermal conductivity | 3.0W/m-K | ASTM D5470 |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied.
Please contact us for confirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
