Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: RoHS
Số mô hình: TIF100-20-10
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1000pcs
Giá bán: 0.1-10 USD/PCS
chi tiết đóng gói: 24*13*12cm thùng
Thời gian giao hàng: 3-5 ngày làm việc
Điều khoản thanh toán: T/t
Khả năng cung cấp: 100000pcs/ngày
Tên sản phẩm: |
2.0W Độ dẫn nhiệt độ dẫn nhiệt silicon Silicon Pads Pad cách làm mát Gap Filler Silicon Pad cho GPU |
Độ dẫn nhiệt: |
2.0W/mk |
Ứng dụng: |
Thẻ hiển thị chip CPU GPU |
Trọng lượng riêng: |
2,65g/cc |
Vật mẫu: |
Mẫu miễn phí |
Nguyên vật liệu: |
Chất đàn hồi silicon đầy gốm |
Đánh giá ngọn lửa: |
94-V0 |
Độ cứng: |
45 ± 5 Bờ 00 |
Màu sắc: |
Xám |
Từ khóa: |
Miếng đệm cách điện silicon |
Tên sản phẩm: |
2.0W Độ dẫn nhiệt độ dẫn nhiệt silicon Silicon Pads Pad cách làm mát Gap Filler Silicon Pad cho GPU |
Độ dẫn nhiệt: |
2.0W/mk |
Ứng dụng: |
Thẻ hiển thị chip CPU GPU |
Trọng lượng riêng: |
2,65g/cc |
Vật mẫu: |
Mẫu miễn phí |
Nguyên vật liệu: |
Chất đàn hồi silicon đầy gốm |
Đánh giá ngọn lửa: |
94-V0 |
Độ cứng: |
45 ± 5 Bờ 00 |
Màu sắc: |
Xám |
Từ khóa: |
Miếng đệm cách điện silicon |

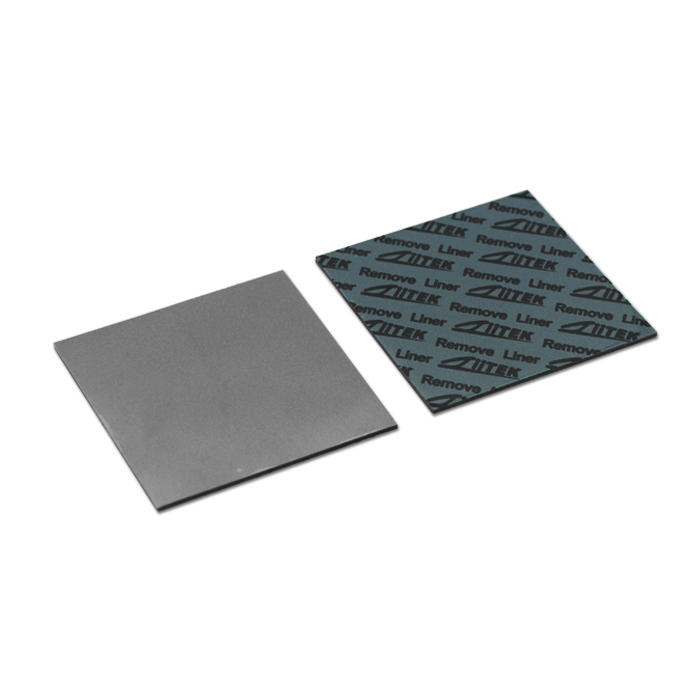

2.0W Thermal Conductivity Silicon Pad Silicon Insulation Pads Cooling Gap Filler Silicone Pads For GPU CPU
Product descriptions
TlF®100-20-10S use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
> Good thermal conductive 2.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> RoHS compliant
> UL recognized
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Application
> Mainboard/mother board
> Notebook
> Power supply
> CPU
> Micro heat pipe thermal solutions
> Telecommunication hardware
> Routers
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Memory Modules
> Mass storage devices
| Typical Properties of TIF®100-20-10S Series | ||
| Property | Value | Test method |
| Color | Gray | ***** |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 2.65g/cc | ASTM D297 |
| Thickness range | 0.020"(0.50mm)~0.200"(5.0mm) | ASTM D374 |
| Hardness | 45±5 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ***** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.7 MHz | ASTM D150 |
| Volume Resistivity | 1.0X10¹² Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Thermal conductivity | 2.0W/m-K | ASTM D5470 |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied.
Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
