Chi tiết sản phẩm
Nguồn gốc: Việt Nam
Hàng hiệu: Ziitek
Chứng nhận: RoHS
Số mô hình: TIF100-11U
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1000pcs
Giá bán: 0.1-10 USD/PCS
chi tiết đóng gói: Thùng 24*13*12cm
Thời gian giao hàng: 3-5 ngày làm việc
Điều khoản thanh toán: T/T
Khả năng cung cấp: 100000 chiếc / ngày
Tên sản phẩm: |
Chất chịu nhiệt 1,5W Pad nhiệt silicon cho máy tính xách tay máy tính xách tay CPU GPU SSD LED LED |
Từ khóa: |
Miếng đệm nhiệt silicon |
Màu sắc: |
màu xám |
Ứng dụng: |
Máy tính xách tay nóng CPU GPU SSD LED LED |
Độ cứng: |
27 bờ biển 00 |
đánh giá ngọn lửa: |
94-V0 |
Trọng lượng riêng: |
2,2g/cc |
Khả năng dẫn nhiệt: |
1,5W/mK |
Vật liệu: |
Chất đàn hồi silicone chứa đầy gốm |
Tên sản phẩm: |
Chất chịu nhiệt 1,5W Pad nhiệt silicon cho máy tính xách tay máy tính xách tay CPU GPU SSD LED LED |
Từ khóa: |
Miếng đệm nhiệt silicon |
Màu sắc: |
màu xám |
Ứng dụng: |
Máy tính xách tay nóng CPU GPU SSD LED LED |
Độ cứng: |
27 bờ biển 00 |
đánh giá ngọn lửa: |
94-V0 |
Trọng lượng riêng: |
2,2g/cc |
Khả năng dẫn nhiệt: |
1,5W/mK |
Vật liệu: |
Chất đàn hồi silicone chứa đầy gốm |

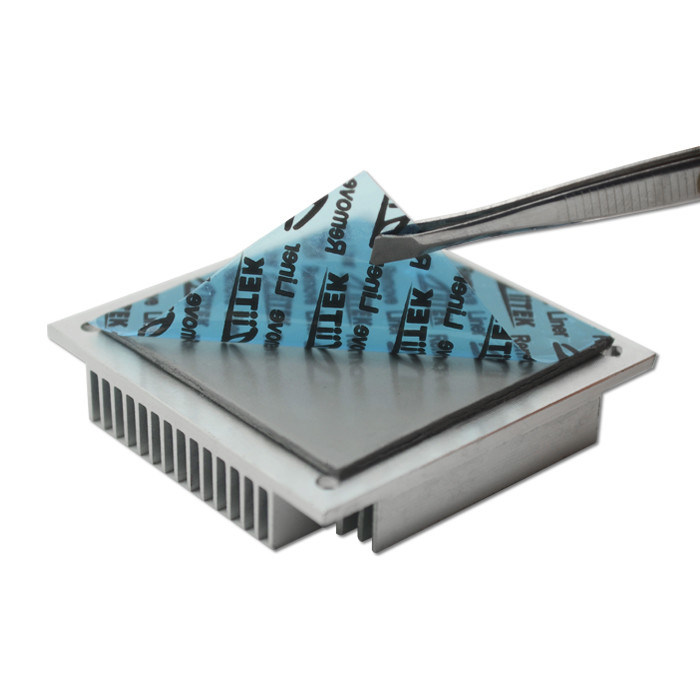

TIF100-11U Heat Resistant 1.5W Silicone Thermal Pads For Laptop Heatsink CPU GPU SSD IC LED Cooler
Product descriptions
TlFTM100-11U Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
> Good thermal conductivity 1.5W/mK
> NMoldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Application
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| Typical Properties of TIFTM100-11U Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.020"~0.200"(0.5mm~5.0mm) | ASTM D374 |
| Hardness | 27 (Shore 00) | ASTM 2240 |
| Specific Gravity | 2.2 g/cc | ASTM D297 |
| Continuos Use Temp(℃) | -40~200℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 3.5 MHz | ASTM D150 |
| Volume Resistivity | 1.0X10¹² Ohm-meter | ASTM D257 |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
| Flame Rating | 94-V0 | UL E331100 |
| Outgassing(TML) | 0.35% | ASTM E595 |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm),Individual die cut shapes and custom thickness can be supplied.
Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
